Transportation Terminal Hub

Proposed Industrial and Commercial Development at Clair Road West, Guelph

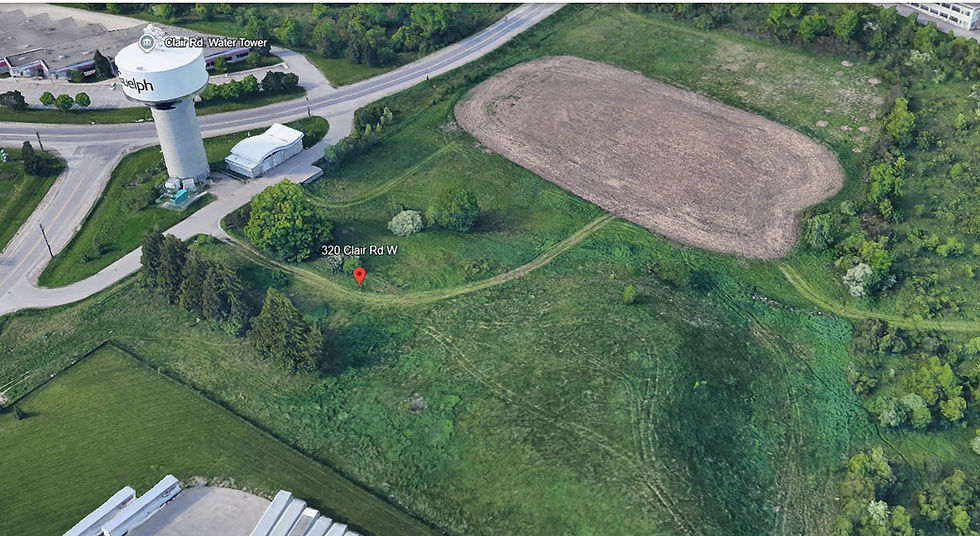

Site Location:
The site is located at 320 Clair Road West in the City of Guelph. The 2.43-hectare property is situated within a growing industrial and commercial corridor, requiring careful integration with existing municipal infrastructure and environmental systems.

Proposed Development:

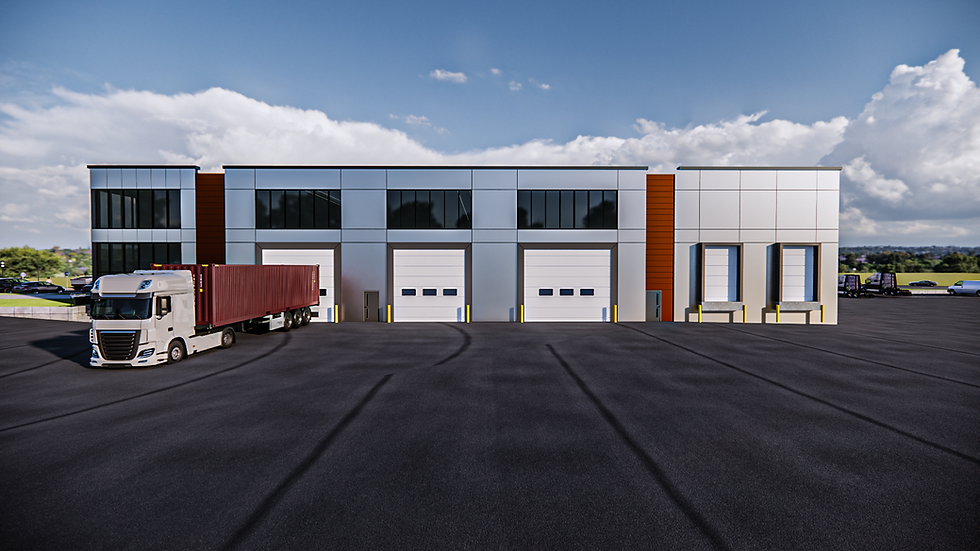

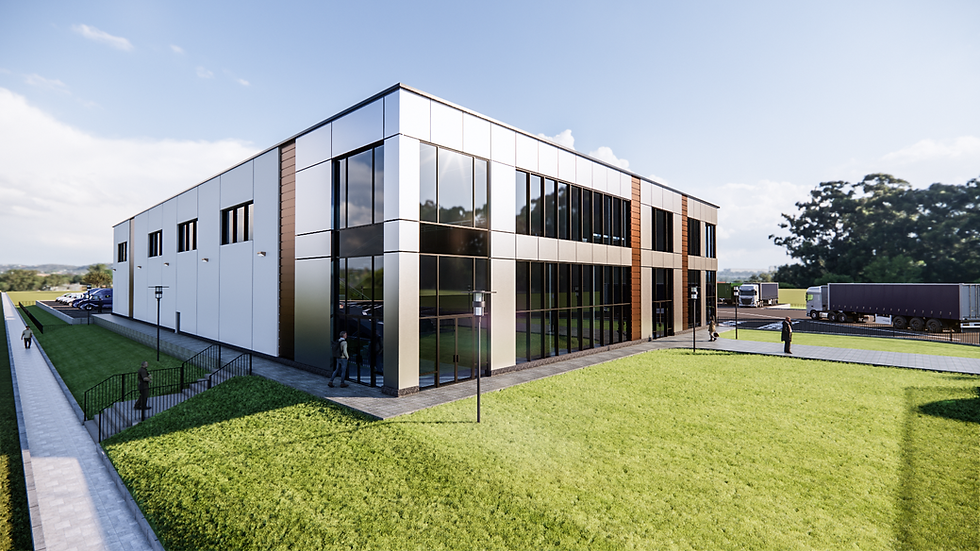

This development represents a strategic expansion and renovation project, combining a modern two-storey commercial office building with a high-capacity single-storey industrial warehouse. The design is optimized to support logistics operations while maintaining a strong professional presence along Clair Road West.

The project addresses complex site constraints, including challenging topography and the absence of a direct municipal storm outlet. Through an integrated architectural and civil engineering approach, the development transforms these constraints into a high-performance, fully serviced industrial-commercial hub.


Services Provided by N & N Engineers LTD:
N & N Engineers LTD delivered a fully integrated scope of architectural and civil engineering services to ensure seamless coordination between design intent and technical execution.

Functional Servicing Report:
Comprehensive evaluation of existing municipal infrastructure, including water main and sanitary systems, to confirm servicing capacity for the proposed development. The report outlines detailed servicing strategies aligned with the City of Guelph standards.

Stormwater Management Report:

The stormwater management strategy is based on a zero-impact design approach, ensuring all runoff is managed within the site boundaries.

The system includes a dry pond and high-capacity infiltration galleries designed to accommodate up to 100-year storm events. Low Impact Development (LID) measures are implemented to maintain pre-development groundwater recharge rates and protect the Hanlon Creek subwatershed.

Water quality is enhanced through the use of Stormceptor (OGS) units, achieving 80% removal of Total Suspended Solids (TSS) prior to infiltration, meeting enhanced treatment criteria.

Site Servicing Plan:
Engineering design for water, sanitary, and storm servicing connections, including extension to the municipal 400mm water main and integration with the existing 300mm sanitary sewer system.

Grading Plan:
Detailed grading strategy developed using advanced topographic modeling to address challenging site conditions. The design minimizes earthworks while ensuring safe access and efficient circulation for heavy vehicles.

Erosion Control Plan:
Implementation of erosion and sediment control measures to protect surrounding lands and water systems during construction, in accordance with municipal and environmental guidelines.

Sanitary Sewer System Analysis:
Assessment of sanitary servicing capacity to accommodate peak flows from both industrial and office components, ensuring compliance with applicable standards and long-term system performance.

Groundwater Drainage System Design:
Design strategies were developed to manage subsurface water conditions and ensure long-term structural performance and site stability.

Purpose and Impact:

The integrated architectural and engineering approach adopted by N & N Engineers LTD ensures that the development meets all municipal, environmental, and functional requirements while optimizing project efficiency.

By combining architectural design and civil engineering under a single coordinated framework, the project achieves reduced approval timelines, improved cost efficiency, and a cohesive development vision. This approach enables City staff to effectively evaluate infrastructure impacts while supporting sustainable growth within the City of Guelph.
